12V 2A AC DC Power Adapter EU Plug for CCTV Cameras

Name: 12V 2A AC DC Power Adapter EU Plug for CCTV Cameras
Brand: KUNCAN
Price: 1.58 USD

China 12V 2A AC DC Power Adapter EU Plug for CCTV Cameras wholesale

Brand Name : KUNCAN

Model Number : KC-AD-EU-12V2A

Certification : CE

Place of Origin : China

MOQ : 500

Price : USD1.58/PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000PCS/Per Week

Delivery Time : 15days

Packaging Details : White Carton

Type : AC DC Adapter

Output : 12V,2A

Plug Type : EU

Power Cord Length : 1.8m

Certifications : CE, FCC, RoHS

Color : Black/White

Cable : 2464/2468 20-28AWG

DC Sizes : 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm

Input : 100-240Vac 50/60Hz

Over voltage protection : 120% min

Contact Now

kc cabel Alibaba International Station Products:

http://www.sdcable.co/productgrouplist-209989797/Power_supply.html

12V DC Power Adapter Series

Regulated switching power supplies with overload protection and universal input voltage

6W (12V 0.5A)

12W (12V 1A)

18W (12V 1.5A)

24W (12V 2A)

30W (12V 2.5A)

36W (12V 3A)

0.5A Model Specifications

Parameter	Value	Testing Standard
Input Voltage Range	100-240V AC	IEC 61000-3-2
Output Voltage Accuracy	±5% (12V DC)	EN 60335-1
Ripple & Noise	<120mV p-p	IEC 61000-4-17
Efficiency	≥85% (typical)	Energy Star V2.0

Safety Certifications

UL 62368-1 CE EN 55032 FCC Part 15B RoHS 3 Compliant PSE Japan

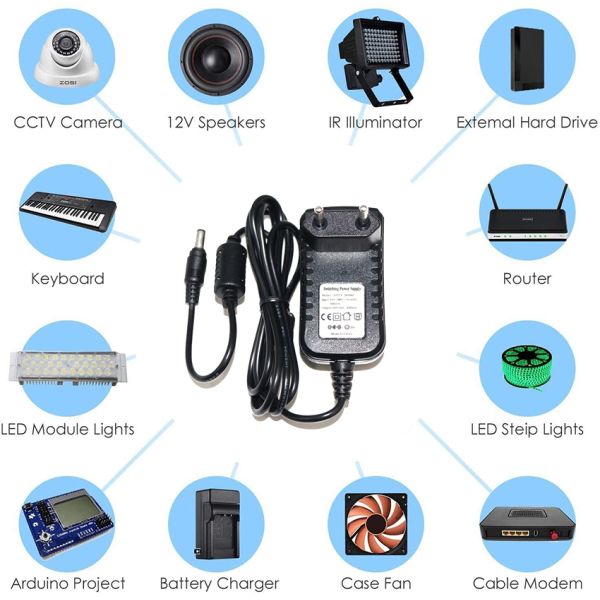

Common Compatible Devices

12V 0.5A-1A:

WiFi routers (TP-Link/Netgear)
Bluetooth speakers
Digital photo frames

12V 1.5A-2A:

CCTV cameras
LED strip lights
POS terminals

12V 2.5A-3A:

3D printer components
Industrial controllers
Automotive test equipment

FAQs & Troubleshooting

Can I use a 12V 3A adapter for a 12V 1A device?

Yes (voltage must match exactly, current rating indicates maximum capacity). Higher amperage adapters are safe but don't exceed voltage.

Why does my adapter get warm during use?

Normal operation may cause temperatures up to 60°C. Discontinue use if: 1) Case deformation occurs 2) You smell burning 3) Temperature exceeds 70°C.

Dc 12V 2A Power Supply For Cctv Ip Camera Charging Ac Adapter Dc 5.5Mm Jack

Product Description:

Input	Input voltage	AC 100~240V
	Variation Frequency	50-60Hz
	Input frequence	50~60Hz
Output	Output voltage	12v
	Output current	2A
	Output power	24W
Input plug types	EU/ US /UK /AUS /South Korea /South African Plugs
Out plug types	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc
DC jack size	5.52.1mm, 5.52.5mm, 3.51.35mm, 3.51.0mm, 4.01.7mm, 2.50.7mm .etc
Safety protection	Over voltage protection	120% min
	Over current protection	120% min
	Short circuit protection	auto recovery
	Over hot protection	auto recovery
Electronic characteristics	Operating Temperature	-40~50°C
	Storage Temperature	-40 to +85 °C
	Humidity	10%~95%RH
	Efficiency	80%
	Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
	Turn-on Delay Time	3 second max
	Overshoot at Turn-on	10% max when turn on or off
	AC leakage Current	0.25mA max at AC 240V voltage
	Load Regulation	±5%
	Line Regulation	±5%
	High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
	Drop Test	0.75m drop test, 6 times
	Burn-In Test	100% load, 5hours
Application	CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc
Safe Certificate	CE ROHS FCC CB BS SAA C-tick PSE KC
